Lazer Linear-6 LED Light Bar

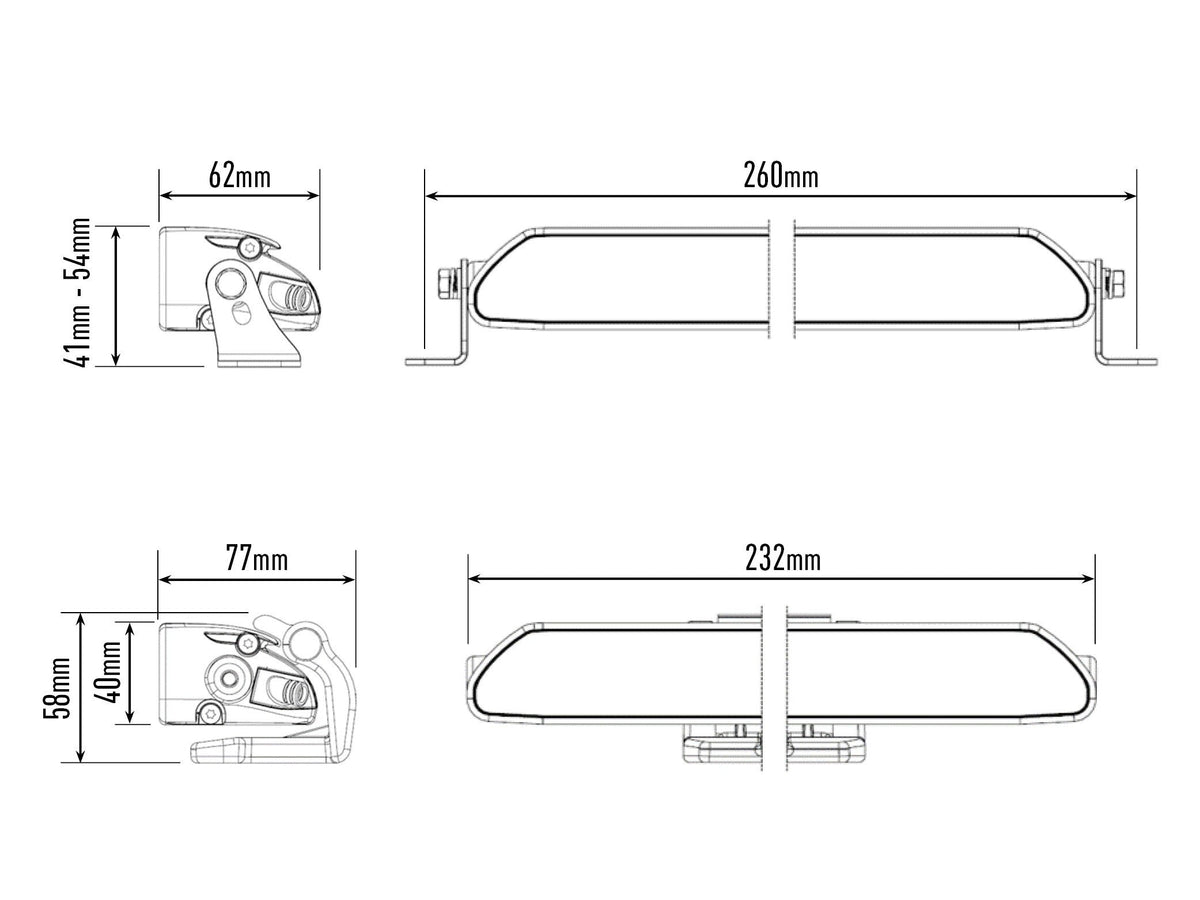

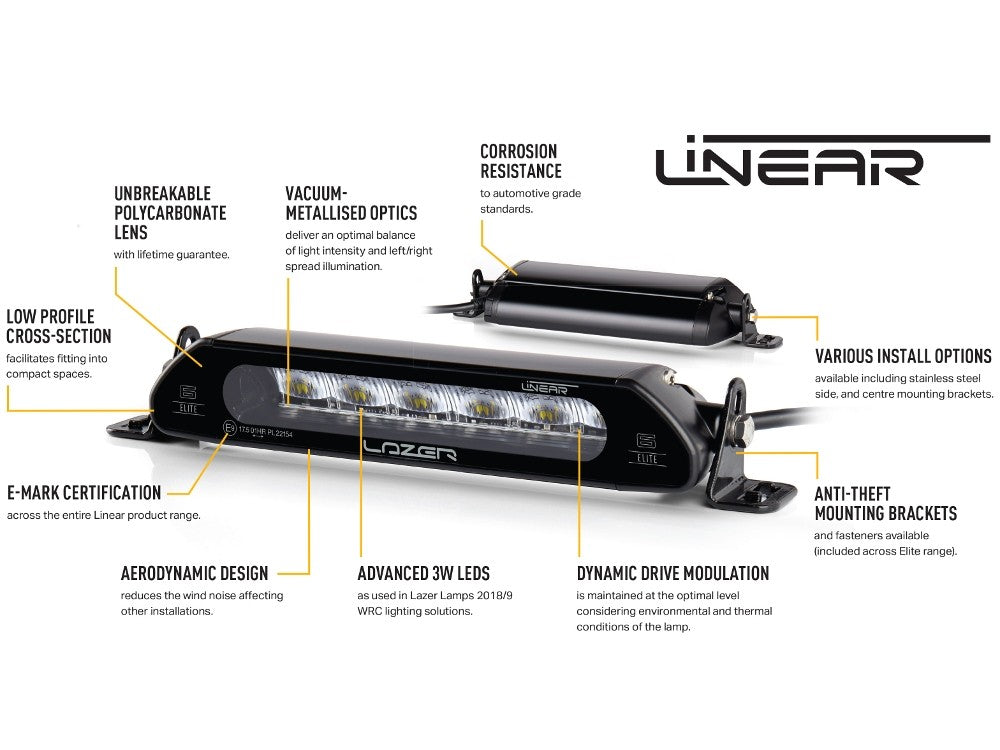

At just 232mm in length, and with an aluminium body measuring just 40mm in height, and weighing less than 500grams, the Linear-6 is an auxiliary LED light that can be subtly integrated onto any everyday road vehicle without compromising the vehicle aesthetics. A borderless 'unbreakable' polycarbonate front lens, featuring hardcoat lacquer, allows for improved aero performance and prevents the build-up of ice/snow/dirt that might otherwise interfere with the light distribution. Automotive grade corrosion resistance, alongside stainless steel brackets and fasteners, ensures the high-end styling of the lamps themselves stays in prime condition for many years to come. Forge Automotive supplies this light bar and can fit it at our Darwen and Leeds sites.

Where the requirement is for an economical auxiliary lighting solution, that still provides for superior high beam lighting performance when compared to any OE headlamps, then the Linear-6 delivers. Like all Lazer products, the lamp is manufactured in the UK to exacting standards, with the build quality and performance assured, and backed up by our comprehensive 5-year warranty.

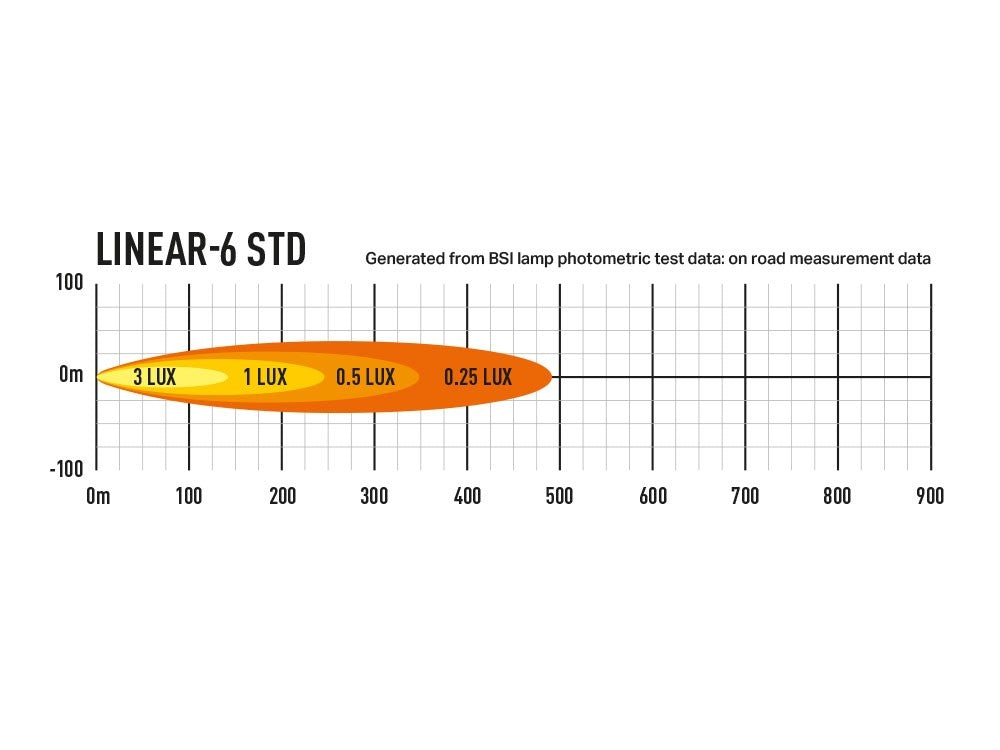

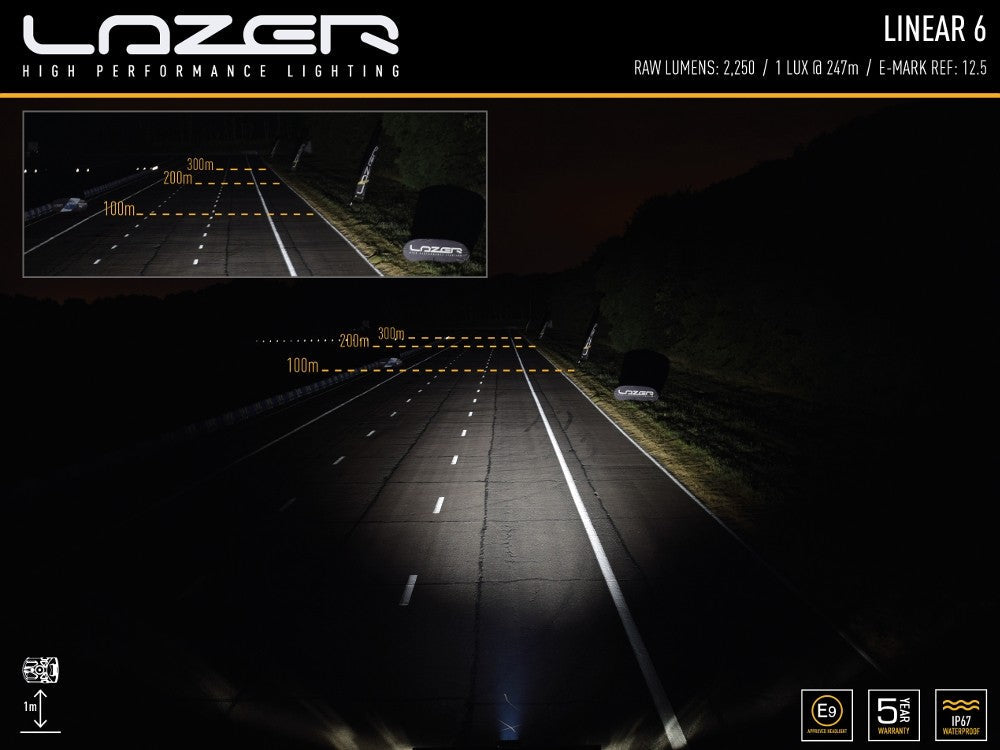

The Linear-6 utilises highly efficient 3W LED technology, which combines to deliver 2,250 lumens, and 1 Lux to near 250m; impressive considering the lamp only consumes 21W and with a current draw of 1.5Amps. The light distribution can be best described as ‘wide’ which taking nothing away from the enviable distance illumination, does provide for a comfortable left/right spread of light, with a comparatively lower up/down spread (when compared to the equivalent ST or Triple-R product), that makes the Linear-6 especially well suited to lower install positions, such as vehicle grille or number plate mounting.

- x1 Wiring and Installation Instructions

Key features

• 232 mm aluminium body, 40 mm high, under 500 g
• 2,250 lumens, 1 lux to near 250 m, 21 W, 1.5 A
• Borderless polycarbonate lens with hardcoat lacquer
• Side mount and wiring included, five-year Lazer warranty

What's in the box

• 1 x Linear-6 LED lamp
• 1 x side mount (1126k)
• Wiring and fitting instructions

Fitment

• Universal auxiliary lamp; the lights Urban fit in their Defender light bar

Supplied, fitted and finished by Forge Automotive

Forge Automotive can fit this light bar at either of our sites: Darwen in the North West or Gildersome, Leeds in Yorkshire. Forge Automotive can also finish this light bar before fitting: paint protection film (PPF) to guard the carbon, a colour change or satin wrap, or colour matching to the car. Ask when ordering. See more Land Rover Defender L663 parts.

Common questions

How do I look after a carbon fibre part?
Treat the lacquer like paint: wash with pH-neutral shampoo, avoid harsh solvents, and wax or seal it. UV is what ages carbon, so a protected finish lasts longer. Forge Automotive can apply paint protection film to any carbon part before fitting, which guards against stone chips and keeps the weave clear.

Fitting is available on every part at our North West (Darwen) and Yorkshire (Leeds) workshops. Prefer to fit it yourself? Fitting instructions ship with every part.

In-stock parts ship in 3–5 working days, fully insured. Every part is fitment-checked before dispatch.

Covered by the manufacturer warranty. Fitting through our workshop keeps it intact.
